Buchholz Rölesi DN25 F16 - En 50216-2

Marka : YedekON

Barkod : YDKONARS12345636

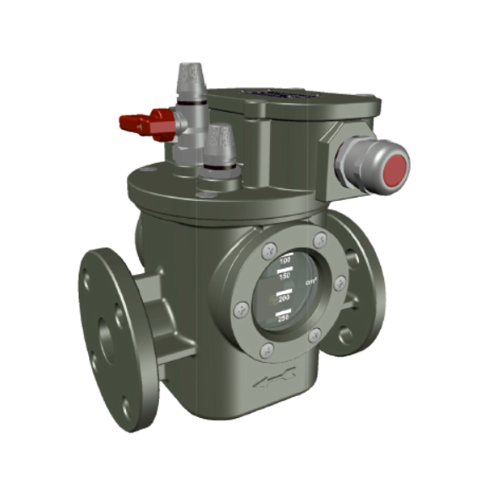

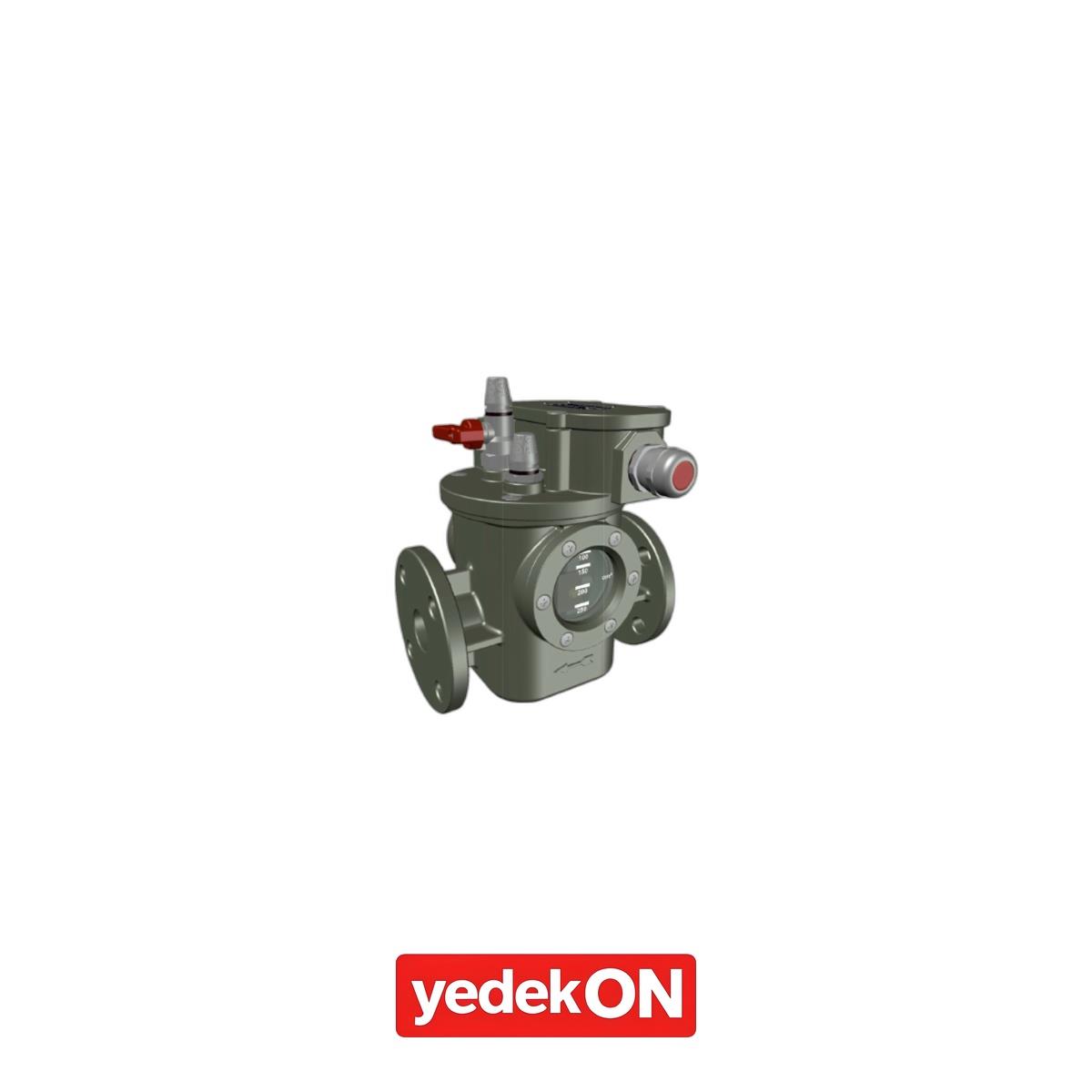

Buchholz Rölesi DN25 F16 - EN 50216-2

DN25-F16 Flanged and DN25-F50 Flanged

ARES Buchholz Relay in accordance with EN 50216-2 protects liquid immersed transformers and reactors with conservator. It will be mounted in the pipeline between transformer and conservator tank.

ARES Buchholz Relay operates as a protection device that can be provided with two contacts for alarm and tripping.

Features:

Reed switches up to 2 NO or 2 CO contacts per function , Ambient temperature: -30 °C bis 55 °C, IP65

Your benefits:

Reed switches for detection of gas formation and dropping oil level
Flap valve to protect in case of excessive oil flow rate
Switch elements separated from the oil circuit
Mechanical testing of contact switches (test button)

Buchholz Relay MBP in accordance with EN 50216-2

Nominal pipe diameter: DN 25 (1"); DN 50 (2"); DN 80 (3")

Connection: Flange connection and thread connection G 1 1/2"

Avantajlarınız:

Gaz oluşumunu ve düşen yağ seviyesini algılamak için Reed anahtarları
Aşırı yağ akış hızına karşı koruma sağlayan klape valfi
Yağ devresinden ayrı anahtar elemanları
Kontak anahtarlarının mekanik testi (test düğmesi)

EN 50216-2 standardına uygun Buchholz Rölesi MBP

Nominal boru çapı: DN 25 (1"); DN 50 (2"); DN 80 (3")

Bağlantı: Flanş bağlantısı ve dişli bağlantı G 1 1/2"
